COMET CWD-230 - T2FD ANTENNA (WITHOUT COAX) 1.8-30MHZ
COMET CWD-230 - T2FD ANTENNA (WITHOUT COAX) 1.8-30MHZ
COMET CWD-230 - T2FD Antenna (without coax) 1.8-30MHz
Technical Specifications:
Frequency Range: 1.8‐30MHz
Input Impedance: 50Ω
Max. Input Power: 150W (PEP)
ROS: <3 across the entire band
VSWR: 2.0 or less (2‐18MHz), 3.0 or less (18‐30MHz)

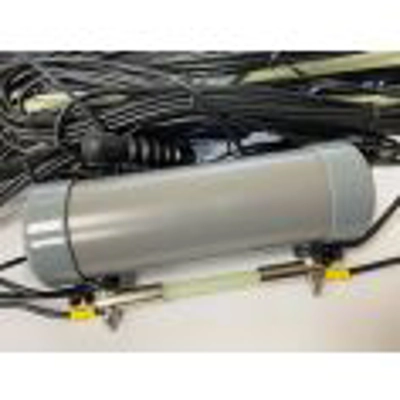

Connector: Balun SO‐239 (M‐J type)

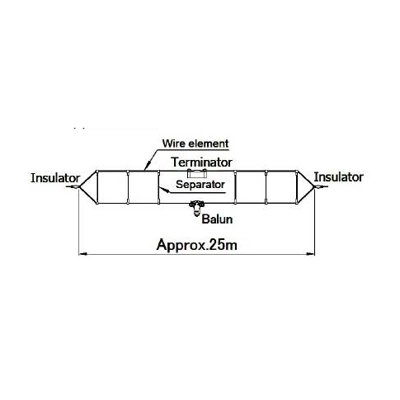

Antenna Length: Approx. 25m (82ft)
Weight: Approx. 3kg
COMET CWD-230 - T2FD Antenna (without coax) 1.8-30MHz
Technical Specifications:
Frequency Range: 1.8‐30MHz
Input Impedance: 50Ω
Max. Input Power: 150W (PEP)
ROS: <3 across the entire band
VSWR: 2.0 or less (2‐18MHz), 3.0 or less (18‐30MHz)
Connector: Balun SO‐239 (M‐J type)
Antenna Length: Approx. 25m (82ft)
Weight: Approx. 3kg
14v1b2p
Product Code
3000.0 g
weight
New
Product Condition
1
Units in Stock
