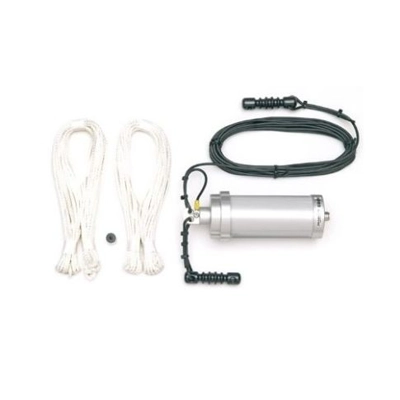

DIAMOND BB6W HF 2 TO 30MHZ ANTENNA
DIAMOND BB6W HF 2 TO 30MHZ ANTENNA
HF wide-band antenna ideal for limited space gardens or apartment dwellers similar to the BB7V except that it has a horizontal wire section after the loading coil/balun instead of a vertical section. It is a non adjustable antenna and may require an ATU to get the SWR to less than 1.5:1.
Key Features/Specifications:
Frequency: 2-30MHz (with antenna tuner)
Length: 6.4m (21ft)
Impedance 50 Ohm
Connector: SO239
VSWR <2:1 (3-30MHz)
Power: 250W (PEP)
Nylon braided cord (5m)
Self-melting plastic sealing tape (30cm)
Weight 0.8kg (with antenna wire)includes nylon braided cord and end insulators
50 Ohm feeder coax line and plugs not included
HF wide-band antenna ideal for limited space gardens or apartment dwellers similar to the BB7V except that it has a horizontal wire section after the loading coil/balun instead of a vertical section. It is a non adjustable antenna and may require an ATU to get the SWR to less than 1.5:1.
Key Features/Specifications:
Frequency: 2-30MHz (with antenna tuner)
Length: 6.4m (21ft)
Impedance 50 Ohm
Connector: SO239
VSWR <2:1 (3-30MHz)
Power: 250W (PEP)
Nylon braided cord (5m)
Self-melting plastic sealing tape (30cm)
Weight 0.8kg (with antenna wire)includes nylon braided cord and end insulators
50 Ohm feeder coax line and plugs not included
