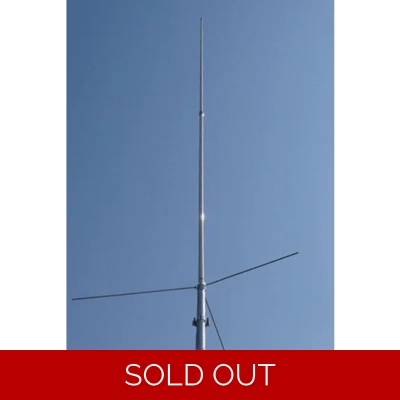

DIAMOND X-6000 BASE STATION ANTENNA
DIAMOND X-6000 BASE STATION ANTENNA
The Diamond X-6000 is a 3.05m base station antenna, provided by the X-Series by Diamond.
Key Features/Specifications:
Length:3.05m
Radial length:approx.52cm
Weight:1.8kg
Gain:6.5dB(144MHz),9.0dB(430MHz),10.0dB(1200MHz)
Max.power rating:100W FM(144/430MHz),60W FM(1200MHz),Total 100W FM
Impedance:50ohms
VSWR: Less than 1.5:1
Rated wind velocity:50m/sec.
Mast diameter accepted:30mm to 62mm
Connector: N-J
Type:2x5/8wave C-Load(144MHz),5x5/8wave C-Load(430MHz),6x5/8wave C-Load(1200MHz),FRP outer shell
The Diamond X-6000 is a 3.05m base station antenna, provided by the X-Series by Diamond.
Key Features/Specifications:
Length:3.05m
Radial length:approx.52cm
Weight:1.8kg
Gain:6.5dB(144MHz),9.0dB(430MHz),10.0dB(1200MHz)
Max.power rating:100W FM(144/430MHz),60W FM(1200MHz),Total 100W FM
Impedance:50ohms
VSWR: Less than 1.5:1
Rated wind velocity:50m/sec.
Mast diameter accepted:30mm to 62mm
Connector: N-J
Type:2x5/8wave C-Load(144MHz),5x5/8wave C-Load(430MHz),6x5/8wave C-Load(1200MHz),FRP outer shell
