icom ic 705 our price £1300

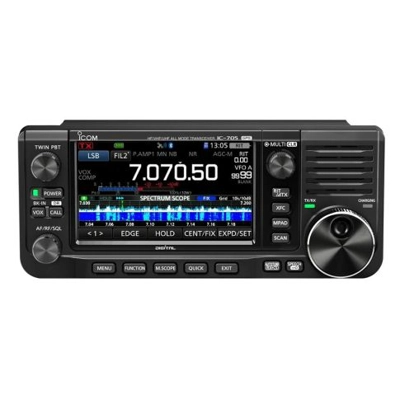

ICOM IC-705 ALL MODE D STAR PORTABLE TRANSCEIVER
The new portable HF/VHF/UHF IC-705 Mobile Transceiver has many great features such as SDR platform, internal battery, GPS, Bluetooth and D-STAR, all in a compact and lightweight body.
The Icom IC-705 uses the same 4.3-inch colour touch screen display as the bestselling IC-7300 and IC-9700 featuring real-time spectrum scope and waterfall display. HF/50/144/430 MHz Multimode Operation - From HF to 50/144/430 MHz, you can enjoy a variety of bands in D-STAR DV, SSB, CW, AM and FM modes.
The IC-705 receives continuously from 30 kHz through the 144 MHz band. You can also enjoy FM broadcast and Airband reception. RF Direct Sampling System - The IC-705 uses the RF direct sampling method* matured in the IC-7300, IC-7610, and IC-9700. This method greatly reduces distortion. The high speed /high resolution real-time spectrum scope and waterfall display are incorporated in a compact design for the first time in this class. (* Down-conversion IF sampling method for 25 MHz and above)
Real-Time Spectrum Scope and Waterfall Display - The IC-705 inherits the performance and functions of the highly acclaimed IC-7300 and IC-9700 scopes. You can visually figure out the band condition and check clear frequencies. It takes you to the next level beyond traditional field operation.
Large Touch Screen Colour Display - The large 4.3-inch colour TFT touch LCD is the same size as the IC-7300 and IC-9700. It offers intuitive operation of the IC-705’s functions, settings, and various operational visual aids, such as the band scope, waterfall, and audio scope functions.
Compact and Lightweight Design - “Base station radio” performance and functions are packaged in a compact size of approximately 20 cm, 7.9 in (W) × 8.35 cm, 3.3 in (H) × 8.2 cm, 3.2 in (D). The weight is approximately 1.1 kg (including BP-272). Its compact and lightweight design enables you to hold it with one hand.
BP-272 Li-ion Battery Pack or 13.8 V DC External Power Supply - The IC-705 utilises the high-capacity Li-Ion battery from the ID-51A and ID-31A handheld radios. A 13.8 V DC external power supply can be used for operation and charging of the BP-272. Maximum Output Power 5 W (BP-272), 10 W (13.8 V DC) - In portable mode, the IC-705 has a maximum output power of 5 W from the BP-272 which can last approx. 3 hours*.
This is perfect for true 5 W QRP as well as the 0.5 W QRPp operations.
Once you setup with a 13.8 V DC power source, you have up to 10 W. (* TX : RX : standby = 1 : 1 : 8 - The Power Save function ON, in the FM mode) Supports Connections Using WLAN/Bluetooth® Technologies - Utilises WLAN/Bluetooth® technologies for linking and remote control*.
The VS-3 headset (optional) enables more comfortable operation via Bluetooth® (* Those features will be available with future firmware upgrades.)
GPS Functions - An internal GPS receiver and antenna enhance your operations by providing location logging*, RX/TX locations via D-PRS®, “Near Me” repeater search/scan, QSO recording with metadata*, and internal clock synchronization. (*Micro SD required) microSD Card Slot - The microSD card slot enables the storage of user-profiles, QSO recording, TX voice memory keyer, RTTY logging, GPS data, screen capture, firmware upgrades, and programming. (* microSD card is not supplied.)
Micro USB Connector - In addition to audio and rig control, the micro USB port allows charging capability, making digital modes easy with minimal cables.
D-STAR Functions - Enjoy the latest G3 Gateway and DV mode features with the IC-705. Have direct access to the D-STAR network with Terminal/Access point modes. Additionally, the IC-705 has the Photo Share feature introduced with the IC-9700. Share photos, without the need of a computer with other users with an IC-705 and IC-9700.
Programmable Speaker/Microphone - Enjoy portable operations with the supplied HM-243, programmable speaker/microphone. Perfect for operation with the IC-705 safely secured in the optional LC-192 backpack.
User assignable buttons put functions like frequency and volume adjustments at the tip of your fingers, without removing your backpack. Optional LC-192 Backpack, Ideal for Field Operations - Designed to be the "Ultimate", must have accessory for the IC-705, the LC-192 is the perfect utility backpack. Features like a safety strap, with a 1/4”-20 mounting lug to keep the IC-705 from accidentally falling out of the custom radio compartment to the user-adjustable internal panels for custom compartments for antennas, battery packs, or other items necessary for an afternoon SOTA activation.
DELIVERY We aim to dispatch all parcels within 24hrs. We are normally able to dispatch parcels SAME DAY where orders are received before 2.00pm Monday to Friday.
ICOM IC-705 ALL MODE D STAR PORTABLE TRANSCEIVER
The new portable HF/VHF/UHF IC-705 Mobile Transceiver has many great features such as SDR platform, internal battery, GPS, Bluetooth and D-STAR, all in a compact and lightweight body.
The Icom IC-705 uses the same 4.3-inch colour touch screen display as the bestselling IC-7300 and IC-9700 featuring real-time spectrum scope and waterfall display. HF/50/144/430 MHz Multimode Operation - From HF to 50/144/430 MHz, you can enjoy a variety of bands in D-STAR DV, SSB, CW, AM and FM modes.
The IC-705 receives continuously from 30 kHz through the 144 MHz band. You can also enjoy FM broadcast and Airband reception. RF Direct Sampling System - The IC-705 uses the RF direct sampling method* matured in the IC-7300, IC-7610, and IC-9700. This method greatly reduces distortion. The high speed /high resolution real-time spectrum scope and waterfall display are incorporated in a compact design for the first time in this class. (* Down-conversion IF sampling method for 25 MHz and above)
Real-Time Spectrum Scope and Waterfall Display - The IC-705 inherits the performance and functions of the highly acclaimed IC-7300 and IC-9700 scopes. You can visually figure out the band condition and check clear frequencies. It takes you to the next level beyond traditional field operation.
Large Touch Screen Colour Display - The large 4.3-inch colour TFT touch LCD is the same size as the IC-7300 and IC-9700. It offers intuitive operation of the IC-705’s functions, settings, and various operational visual aids, such as the band scope, waterfall, and audio scope functions.
Compact and Lightweight Design - “Base station radio” performance and functions are packaged in a compact size of approximately 20 cm, 7.9 in (W) × 8.35 cm, 3.3 in (H) × 8.2 cm, 3.2 in (D). The weight is approximately 1.1 kg (including BP-272). Its compact and lightweight design enables you to hold it with one hand.
BP-272 Li-ion Battery Pack or 13.8 V DC External Power Supply - The IC-705 utilises the high-capacity Li-Ion battery from the ID-51A and ID-31A handheld radios. A 13.8 V DC external power supply can be used for operation and charging of the BP-272. Maximum Output Power 5 W (BP-272), 10 W (13.8 V DC) - In portable mode, the IC-705 has a maximum output power of 5 W from the BP-272 which can last approx. 3 hours*.
This is perfect for true 5 W QRP as well as the 0.5 W QRPp operations.
Once you setup with a 13.8 V DC power source, you have up to 10 W. (* TX : RX : standby = 1 : 1 : 8 - The Power Save function ON, in the FM mode) Supports Connections Using WLAN/Bluetooth® Technologies - Utilises WLAN/Bluetooth® technologies for linking and remote control*.
The VS-3 headset (optional) enables more comfortable operation via Bluetooth® (* Those features will be available with future firmware upgrades.)
GPS Functions - An internal GPS receiver and antenna enhance your operations by providing location logging*, RX/TX locations via D-PRS®, “Near Me” repeater search/scan, QSO recording with metadata*, and internal clock synchronization. (*Micro SD required) microSD Card Slot - The microSD card slot enables the storage of user-profiles, QSO recording, TX voice memory keyer, RTTY logging, GPS data, screen capture, firmware upgrades, and programming. (* microSD card is not supplied.)
Micro USB Connector - In addition to audio and rig control, the micro USB port allows charging capability, making digital modes easy with minimal cables.
D-STAR Functions - Enjoy the latest G3 Gateway and DV mode features with the IC-705. Have direct access to the D-STAR network with Terminal/Access point modes. Additionally, the IC-705 has the Photo Share feature introduced with the IC-9700. Share photos, without the need of a computer with other users with an IC-705 and IC-9700.
Programmable Speaker/Microphone - Enjoy portable operations with the supplied HM-243, programmable speaker/microphone. Perfect for operation with the IC-705 safely secured in the optional LC-192 backpack.
User assignable buttons put functions like frequency and volume adjustments at the tip of your fingers, without removing your backpack. Optional LC-192 Backpack, Ideal for Field Operations - Designed to be the "Ultimate", must have accessory for the IC-705, the LC-192 is the perfect utility backpack. Features like a safety strap, with a 1/4”-20 mounting lug to keep the IC-705 from accidentally falling out of the custom radio compartment to the user-adjustable internal panels for custom compartments for antennas, battery packs, or other items necessary for an afternoon SOTA activation.
DELIVERY We aim to dispatch all parcels within 24hrs. We are normally able to dispatch parcels SAME DAY where orders are received before 2.00pm Monday to Friday.
WX3aNiP
Product Code
5000.0 g
weight
New
Product Condition
1
Units in Stock
