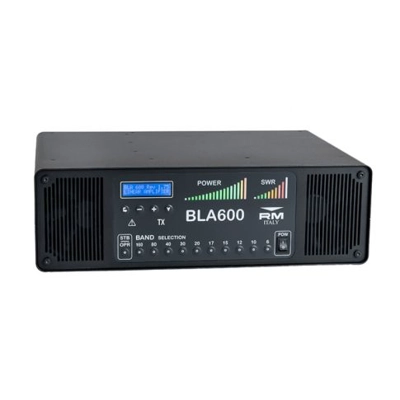

RM BLA600 - WIDEBAND HF 1.8-55MHZ LINEAR AMPLIFIER
RM BLA600 - WIDEBAND HF 1.8-55MHZ LINEAR AMPLIFIER
The BLA 600 is a wideband compact linear amplifier for the HF bands and 6m, from 1.8 to 54 MHz
Key Features/Specifications:
Using Freescale MRFE6VP5600
Output 500W. Dual MCU Control
Fast PIN Diode RX-TX TX-RX switching enables QSK operation
2x16 LCD Display for Amplifier Status
Seperate LED displays for power and antenna VSWR
Input drive from 1W to maximum of 40W (TBC)
3 user configurable Antenna Output connectors
Dual large diameter MCU controlled
Multispeed cooling fans for efficient cooling
Linear 1200W Quiet PSU 115 - 230 - 240 Vac
Weight: 21.5kg
The BLA 600 is a wideband compact linear amplifier for the HF bands and 6m, from 1.8 to 54 MHz
Key Features/Specifications:
Using Freescale MRFE6VP5600
Output 500W. Dual MCU Control
Fast PIN Diode RX-TX TX-RX switching enables QSK operation
2x16 LCD Display for Amplifier Status
Seperate LED displays for power and antenna VSWR
Input drive from 1W to maximum of 40W (TBC)
3 user configurable Antenna Output connectors
Dual large diameter MCU controlled
Multispeed cooling fans for efficient cooling
Linear 1200W Quiet PSU 115 - 230 - 240 Vac
Weight: 21.5kg
