SHARMAN AV-SW4M – SO239 4-WAY COAX SWITCH
SHARMAN AV-SW4M – SO239 4-WAY COAX SWITCH

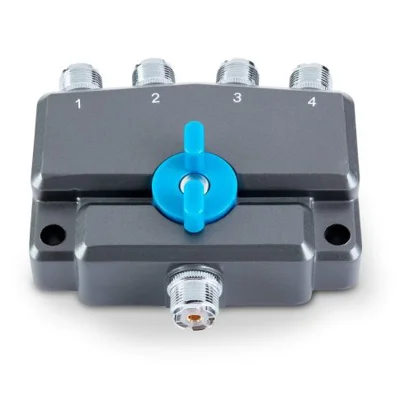

Sharman AV-SW4M – 4-Way SO239 Coax Switch.
Technical Specification:
Frequency Range: DC~900MHz
Connector Input Port: 1 x SO239
Connector Output Port: 4 x SO239
Power Range: DC-30MHz - 1.5KW | 30MHz-200MHz - 1.0KW | 200MHz-500MHz - 500W | 500MHz-900MHz – 150W
Insertion Loss: DC-500MHz ≥0.1dB | 500MHz-900MHz ≥0.2dB
Output Port Isolation: DC-500MHz - ≤60dB | 500MHz-900MHz - ≤55dB
VSWR: DC-500MHz - ≥1.0 | 500MHz-900MHz - ≥1.25
Sharman AV-SW4M – 4-Way SO239 Coax Switch.
Technical Specification:
Frequency Range: DC~900MHz
Connector Input Port: 1 x SO239
Connector Output Port: 4 x SO239
Power Range: DC-30MHz - 1.5KW | 30MHz-200MHz - 1.0KW | 200MHz-500MHz - 500W | 500MHz-900MHz – 150W
Insertion Loss: DC-500MHz ≥0.1dB | 500MHz-900MHz ≥0.2dB
Output Port Isolation: DC-500MHz - ≤60dB | 500MHz-900MHz - ≤55dB
VSWR: DC-500MHz - ≥1.0 | 500MHz-900MHz - ≥1.25
jJHFgUy
Product Code
1.0 kg
weight
New
Product Condition
1
Units in Stock
