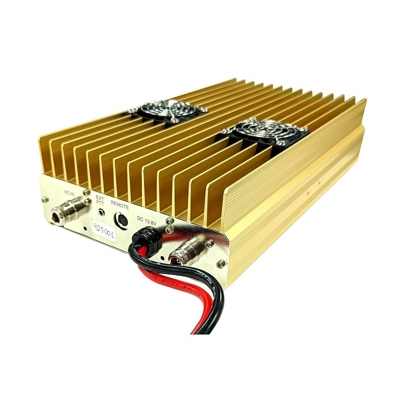

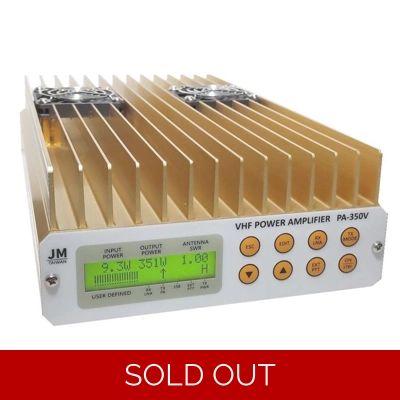

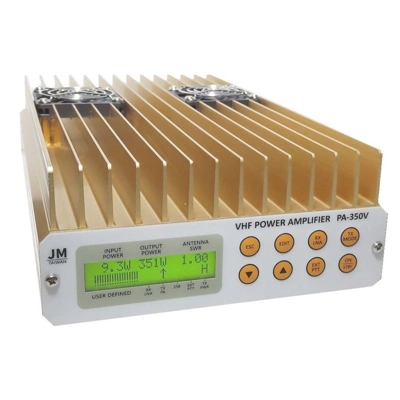

Toptek Communications PA-350V VHF 135-165 MHz 350W Power Amplifiers

Amplifier, VHF, 2m, 135-165 MHz, 350W Out Max., 7.5 or 15W In, FM, SSB, CW, RX Preamp, LCD Meter PWR IN & OUT, Menu PTT IN, Type-N, 13.8Vdc@50A.,

Overview

The PA-350V is is an advanced and versatile high-power Solid State linear amplifier designed for Amateur Radio 2 Meter FM, SSB and CW operations and Commercial VHF. A large, easy-to-read green backlit Alphanumeric LCD provides simultaneous digital input power, output power and SWR readings. Front panel button actions and specialized, user-defined function readouts and menu selections are displayed, including incremental 100, 200, 300 and 350W power output settings. This VHF amplifier* delivers approximately 300 watts output with only 5 watts input from an HT or 350 watts maximum output with a VHF mobile. The PA-350V has two selectable input ranges, Low 15W max and High 30W max, achieving 350 watts output with either 10 watts input or 15 to 25 watts input, to accommodate almost any VHF transceiver. Multiple protection circuits, a Receive Low Noise Amplifier (LNA) with a bandpass filter, RF sense or PTT keying (required for SSB/CW) and thermostatically controlled fans are some of the great features of this top-of-the-line Toptek amplifier. True 50 ohm Type-N RF connectors maintain the highest efficiency to the feedline and antenna.

*Requires 13.8 VDC @ 50A max. (External power supply not included).

Features of the Toptek PA-350V Amplifier:

Wideband Solid State VHF power amplifier delivers over 350 watts of RF output typically with only about 8 or 15 watts of drive power

Selectable input power ranges

Alphanumeric LCD display for various measurements, user configuration and error conditions

Output power (FM) selectable between three user programmable levels

Selectable FM or SSB/CW modes with key-up delay and PEP metering

Multiple protection features: high drive, high SWR, high/low DC voltage, high temperature

Automatic Level Control (ALC) for output power regulation and high SWR protection

Individual DC current sensing and limiting of each sub-amplifier

Receiver Low Noise Amplifier (LNA) with a bandpass filter to prevent blocking by HF signals

Two elegant, thermostatically controlled fans

RF sense or PTT keying (menu selected)

Toptek PA-350V Specifications:

Frequency range: 135 MHz – 165 MHz (refer to performance curves in the manual)

RF Output Power

FM mode: User programmable/selectable between 20 and 360 W

SSB mode: 0 to 360 W max. PEP (set by transceiver output)

RF Input Power

User Selectable: 15 Watt Max./ 30 Watt Max.

Typical Input Power required to achieve selectable FM Output Power, 145 MHz typical (15W/30W ranges):

100 W (1.1W/ 2.3W)

200 W (2.4 W/ 5.0 W)

300 W (5.0 W/10.5 W)

350 W (7.5 W/ 16 W)

Mode: Selectable FM or SSB

RF Bypass Maximum: 50 Watts

Bypass Insertion Loss: Typ. 0.35 dB @ 145 MHz

RX Preamplifier Gain: typ. 20 dB @ 145 MHz

Supply Voltage: 13.8 VDC**, Minimum: 10.5 VDC, Maximum: 14.5 VDC

Supply Current at 350 W output (145MHz): 48 A continuous, 54 A Peak, max.

External PTT Keying Connector: 3.5mm female stereo (1/8 in. TRS jack: ground Tip for PTT)

RF Connectors: Type N female (50 ohm, low loss)

Dimensions, w/o connectors (WHD): 7.250 x 3.545 x 13.780 in. (184 x 90 x 350 mm)

Weight: 6.6 lbs. (3 kg)

* Refer to performance curves in the user manual
** Lower voltage will limit amplifier maximum power; required external DC power supply not included


Specifications

Manufacturer's Part Number:PA-350V


Part Type:VHF/UHF Amplifiers


Product Line:Toptek Communications PA-350V VHF 135-165 MHz 350W Power Amplifiers


DXE Part Number:TEK-PA-350V


Amplifier Type:Solid state


Amplifier Band Coverage:2 meters


Frequency Range:135-165 MHz


RF Output Maximum Power:350 watts


RF Input for Maximum Output:7.5/15 watts


Built-In Preamplifier:Yes


Preamplifier Gain:20 dB


RF Sense Keying:Yes


Keying Connector Type:Stereo 1/8 in. female (3.5mm jack)


Remote Control Connector:None


DC Supply Voltage:13.8 Vdc


DC Supply Current:48 A (54 A peak)


RF Connector Type:Type N female


Amplifier Width:7.250 in.


Amplifier Height:3.545 in.


Amplifier Depth:13.780 in.


Amplifier Weight:6.60 lbs.


Quantity:Sold individually.

Toptek Communications PA-350V VHF 135-165 MHz 350W Power Amplifiers

Toptek Communications PA-350V VHF 135-165 MHz 350W Power Amplifiers are advanced and versatile high-power linear amplifiers designed for Amateur Radio 2 Meter FM, SSB and CW operations and Commercial VHF. A large, easy-to-read green backlit Alphanumeric LCD provides simultaneous digital input power, output power, SWR readings. Front panel button actions and specialized, user-defined function readouts and menu selections are displayed, including incremental 100, 200, 300 and 350W power output settings. This VHF amplifier* delivers approximately 300 watts output with only 5 watts input from an HT or 350 watts maximum output with a VHF mobile. The PA-350V has two selectable input ranges, Low 15W max and High 30W max, achieving 350 watts output with either 10 watts input or 15 to 25 watts input, to accommodate almost any VHF transceiver. Multiple protection circuits, a Receive Low Noise Amplifier (LNA) with bandpass filter, RF sense or PTT keying (required for SSB/CW) and thermostatically controlled fans are some of the great features of this top-of-the-line Toptek amplifier. True 50 ohm Type-N RF connectors maintain the highest efficiency to the feedline and antenna.

*Requires 13.8 VDC @ 50A max. (External power supply not included).
